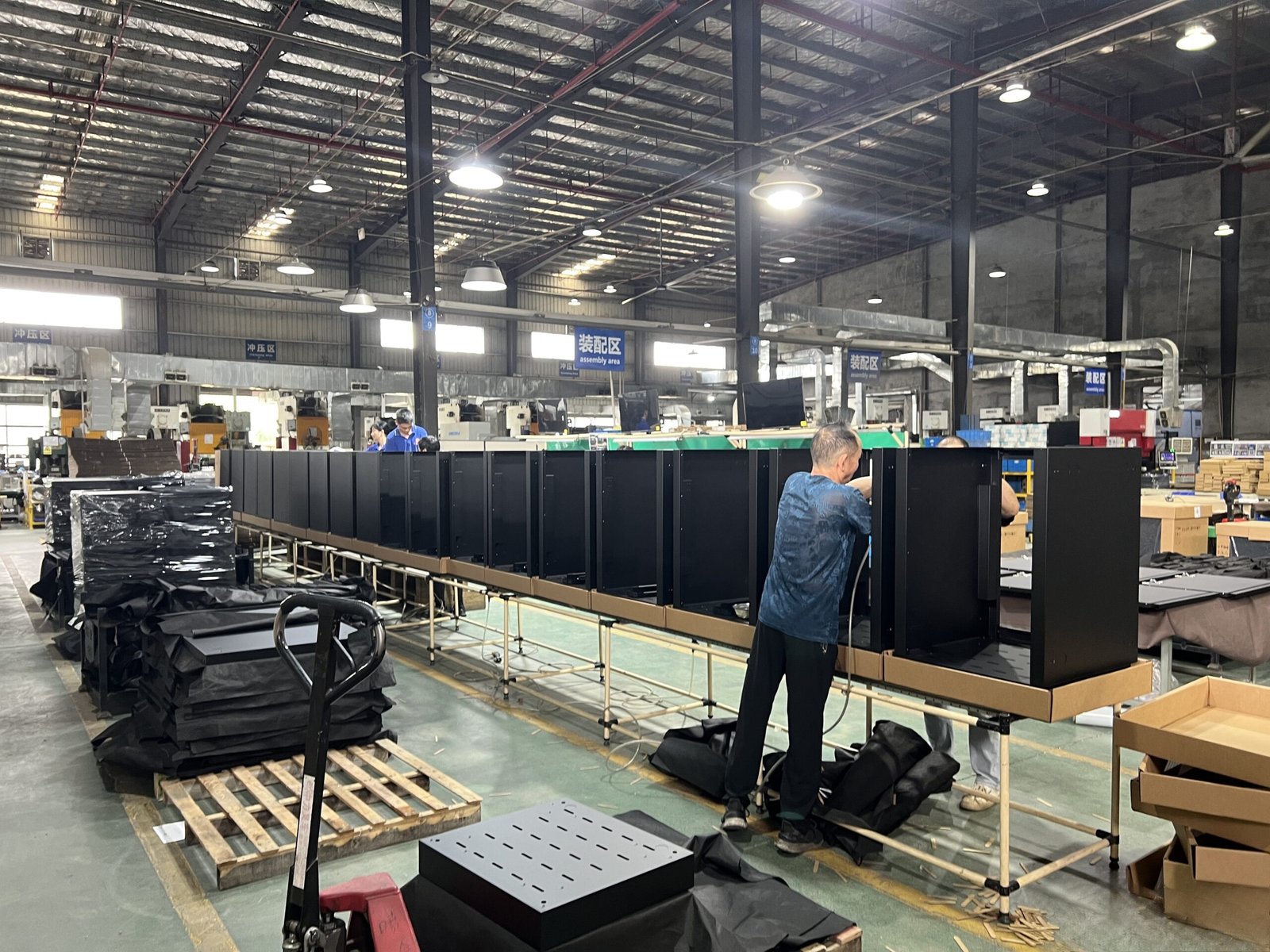

In the world of custom manufacturing, precision cutting, bending, and laser welding are only half the battle. The true test of a fabricator’s capability lies in sheet metal assembly—the art and science of bringing multiple individual stamped, formed, and machined components together into a seamless, structurally sound final product. Whether you are building enclosures for server racks, automotive chassis, medical equipment casings, or architectural panels, understanding assembly workflows is critical for quality, cost efficiency, and performance.
Key Takeaway: Excellent sheet metal assembly begins long before the welding torch or rivet gun touches the metal. It starts with Design for Manufacturability (DFM) during the initial CAD modeling stage.
1. Essential Sheet Metal Joining Techniques
Choosing the right joining method depends on material thickness, structural requirements, aesthetics, and whether the assembly needs to be permanent or serviceable. Here are the primary methods utilized in modern fabrication:
TIG and MIG Welding: Ideal for permanent, high-strength structural joints. TIG offers unmatched precision and clean aesthetics for thin-gauge stainless steel and aluminum, while MIG provides high deposition rates for thicker carbon steel frames.
Laser Welding: A cutting-edge technique that delivers minimal heat-affected zones (HAZ), extreme precision, and virtually seamless joints, reducing the need for extensive post-weld grinding.
Riveting and Clinching: Perfect for joining dissimilar metals (e.g., aluminum to steel) where thermal welding would cause galvanic corrosion or warping. Clinching mechanically interlocks the sheets without requiring extra fasteners.
Fasteners (PEM Nuts, Studs, and Screws): Self-clinching fasteners inserted into pre-punched holes provide strong, reusable threads in thin sheet metal where tapping threads directly would be structurally inadequate.
2. The Step-by-Step Sheet Metal Assembly Workflow
To ensure consistency and eliminate costly errors, a structured workflow must be maintained across the fabrication floor:
| Stage | Key Activities | Quality Focus |
| 1. Pre-Assembly Inspection | Verifying part dimensions, burr removal, edge conditioning, and surface finish checks. | Dimensional accuracy & surface integrity |
| 2. Fixture Alignment | Securing components using custom welding jigs and clamping fixtures to prevent thermal distortion. | Squareness, alignment, and tolerance control |
| 3. Primary Joining | Executing tack welds, structural seams, riveting, or mechanical fastening according to engineering drawings. | Joint strength and penetration consistency |
| 4. Post-Processing | Grinding welds flat, removing spatter, deburring edges, and cleaning surfaces for coating. | Aesthetic finish and safety |
| 5. Final Inspection & Testing | Coordinate Measuring Machine (CMM) checks, leak testing (if required), and visual inspection. | Compliance with client specifications |
3. Overcoming Common Assembly Challenges
Sheet metal assembly presents unique physical challenges due to the thinness of the materials and thermal stresses introduced during joining. Addressing these challenges requires expert engineering oversight:
Thermal Distortion and Warping
Concentrated heat from welding can cause thin sheet metal to buckle or warp. Fabricators mitigate this by using precise copper chill blocks, strict welding sequencing (such as back-step welding), and specialized pneumatic assembly fixtures that clamp the metal firmly in place until it cools.
Tolerance Stack-Up
When assembling ten different stamped and bent parts, microscopic errors in each part can accumulate, causing misalignment at the final stage. Implementing tight tolerances during laser cutting and CNC bending, combined with modular jigging, minimizes stack-up errors.
4. Why Choose Zehan Metal Fabrication for Your Assemblies?
At zehanfab.com, we specialize in end-to-end custom sheet metal fabrication, moving fluidly from rapid prototyping to high-volume production assembly. Our facility is equipped with state-of-the-art laser cutters, CNC press brakes, advanced welding stations, and rigorous quality inspection protocols.
